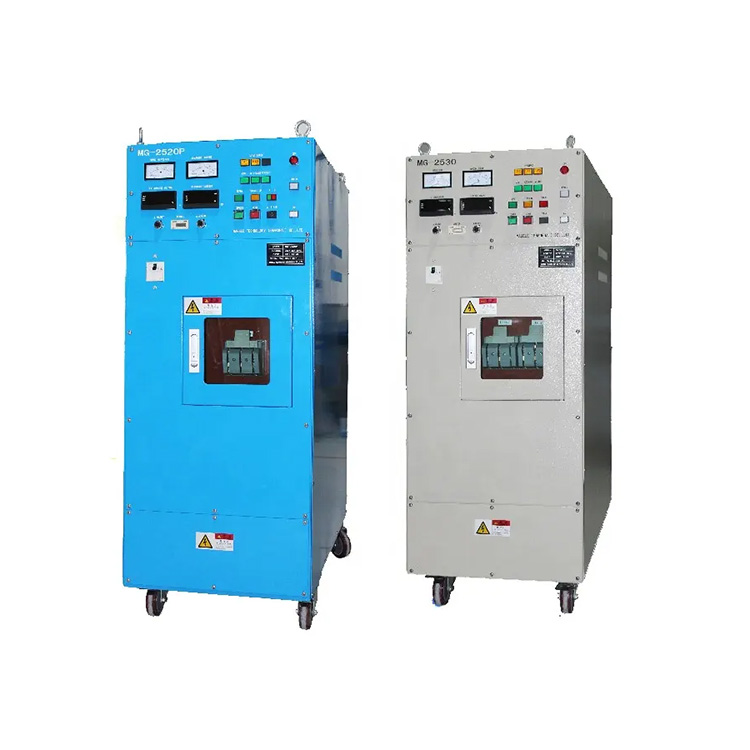

Cabinet chassis structure, used to optimize circuit design, energy storage capacitors for high voltage oil-immersed power long life capacitor. Rigorous testing means power, Long working life, strict material selection and excellent cost performance.
DX-MAG series capacitive pulse magnetizing/demagnetizing machines are composed of high-voltage oil-immersed pulse capacitors, silicon controlled rectifiers and control circuits. The AC power increases the power supply voltage through the isolation transformer, and then is converted into DC by the rectifier to charge the capacitor. The high-voltage direct current energy is stored in the capacitor.
In order to meet different customer needs, the downwardly expanding strategy we used in the product line, we have developed the DXME series magnetizer. These series magnetizers are more cost-effective, more convenient operation, and easy to use.
1. Built-in famous brand PLC. 2. Digital display of preset voltage and output current. 3. Charge time is adjustable. 4. Capacity of the condenser can be switched and the capacity indication. 5. Various operating modes. 6. The counting function.

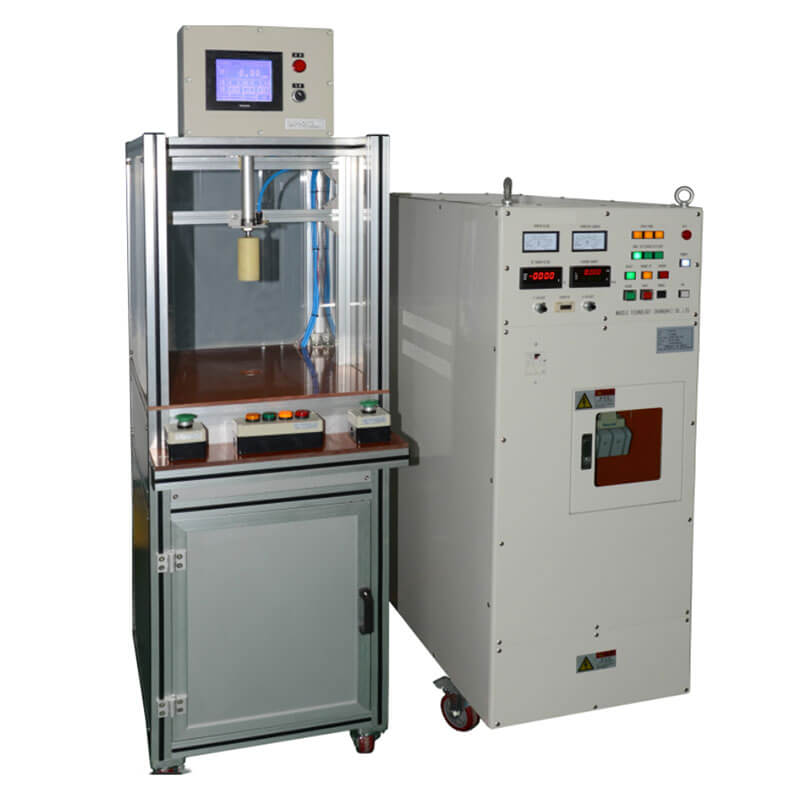

1. The main structure is made of aluminum alloy profiles. 2. PLC programmable control mode. 3. With a touchscreen interface operating system. 4. Can enter the upper and lower production control parameters, and the measurement results were compared to determine whether or not qualified, and display sound and light alarm.
